Usage
Will my Tastic heat my bathroom?
No – your Tastic is designed to provide infra-red radiant heat to warm the body while drying, when standing directly underneath. It is not designed to be a room heater.
What will happen if I leave my heat lamps on without fan operation?
On certain models (Eco Tastic & Easy Duct Tastic) the fan will commence operation automatically to keep the unit operating at a safe temperature.
When the unit has cooled sufficiently the fan will switch off automatically, while the heat lamps of Classic Tastics will operate normally when the fan is off.
Installation
Can I install my Tastic directly above a shower recess?
For safety reasons it is not recommended to install above shower recess. The exceptions are these IP-rated models which are suitable:
- 35101 – Neo Vent Module
- 35102 – Neo Vent Module
- 35401 - Luminate Vent Module (White)
- 35402 - Luminate Vent Module (Silver)
- 34401 - Luminate Vent & Light Module (White)
- 34402 - Luminate Vent & Light Module (Silver)
- 10334 – Ducted Ventflo Ceiling Fan 200mm
- 10336 – Ducted Ventflo Ceiling Fan & Light 200mm
- 10337 – Ducted Ventflo Ceiling Fan 250mm
- 10338 – Ducted Ventflo Ceiling Fan & Light 250mm
Please refer to the current Australian/New Zealand Wiring Rules AS/NZS 3000 relating to damp situations for further details.
Can I retrofit a remote control to my existing hardwired Tastic?
No, unfortunately this is not possible.
Can the installer rotate the IXL wall switch mechanisms?
Yes, the wall switches can be rotated by a qualified electrical tradesperson.
Can my installer use an alternative wall switch mechanism other than the one supplied with my IXL product?
Yes, your authorised installer can use an alternative switch mechanism.
Do the Neo Luminate Single/Dual products have to be installed level?
Yes, they must be horizontal. Tastic products are only designed and approved for use in horizontal applications.
How to get the best extraction results from my exhaust fan
The following is a checklist to ensure that the exhaust product that you install will perform at its optimal level. As every home is different, the installation of the product varies, depending on the installer, room size and roof cavity configuration.
- To prevent moisture build up, bathrooms need a fan with the capacity to change the air volume of the room at least 15 to 20 times per hour. To ensure that the fan is working correctly, there needs to be air flow coming into the bathroom via an open window or from under a door. Energy ratings under the Australian Building Code may require doorways to the bathroom to be sealed and this combined with a sealed window may reduce the effectiveness of any installed exhaust fan. No matter what brand.

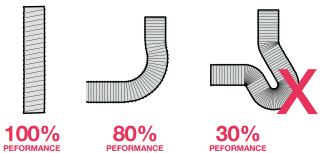

Check that your ducting is pulled taut in the cavity. If there are any kinks or bends in the ducting, the in-line exhaust fan will not operate effectively.
Our online calculator provides information on how to determine what level of extraction you need depending on the room type and size.
To ensure adequate ventilation include in your calculations spaces that directly flow into the bathroom such as large, open plan bedrooms, laundries or walk-in robes.
Bathrooms that have high ceilings, are larger than average (greater than 7.5 m2), or that have an open shower may all require additional ventilation.
If there is an open shower, we recommend an additional IP-rated fan above the shower area regardless of the size of the bathroom. An IXL Eco Ventflo or Tastic Neo Vent Module would be suitable in this instance.
Which duct outlet do I need for my Ducted Ventflo model?
A 125mm diameter duct outlet would fit the Ducted Ventflo Ceiling Exhaust Fan 200 (model 10334) and Exhaust Fan & Light 200 (model 10336), while the 150mm diameter duct outlet would fit the Ducted Ventflo Ceiling Exhaust Fan 250 (model 10337) and Exhaust Fan & Light 250 (model 10338).
Why does IXL not supply a cable and plug for the Ducted Ventflo Celing Exhaust Fan & Light models?
It is because we want to provide an option for the users and electricians to decide whether a separation of functions of the exhaust fan and light on the wall switch would be desirable.
Replacement Parts
Please see the replacement globes and heat lamps here.
Can I replace my 275 watt heat lamps with 375 watt lamps?
No. You can only use heat lamps which have been fitted and approved for use in your product. The rating label will state the maximum wattage for your product.
What is the maximum recommended light globe wattage that I can install in my Tastic?
Check the rating label for the maximum safe wattage for your product.
What is the part number for my replacement globe?
| Part Number | Type of Lamp |
| 12135 | 100W ES Reflector Centre Globe |
| 12213 | Crompton ES Halogen Centre Globe R63 42W Satin |
| 12253 | LED Cuplamps 7W 50mm Dia GU10 4000K (for Tastic Neo) |
| 12281 | 12W LED R80 Centre Globe |
| 11300 | IXL Genuine Heatlamps - 275W |
| 11375 | IXL Genuine Heatlamps - 375W |
| 11380 | Heat Lamp IR Halogen 800W 240V R7S 258mm long (for Tastic Neo) |
Troubleshooting
Why is my Tastic making noise?
All Tastics create some noise due to the rapid movement of air through the Tastic. Do not remove the Tastic from the ceiling. If service is required, please contact IXLs Service Centre on 1300 727 421 or [email protected].
My Tastic unit’s extraction fan doesn’t seem to be removing all the moisture and steam from my bathroom?
There are a number of factors that will influence the exhaust fan’s performance.
- You can improve your cross ventilation via an open door or window.
- There must be adequate ventilation in your roof cavity if exhausting into it so that the steam laden air can dissipate. If the ventilation space is restricted in your roof cavity then an Easy Duct Tastic may be required to duct the exhaust air to outside the home.
- If you live in a traditionally cooler climate, in the winter months during hot showers, you may notice that there is more moisture and condensation build up. If this is the case, you may wish to improve your natural ventilation or invest in an additional exhaust fan.
- Bathrooms which have high ceilings, are larger than average, or have an open shower may all require additional ventilation.
Why is the motion sensor LED globe always ON?
Check whether the switch on the motion sensor LED globe is in the OFF position. If so then set the switch to the ON position to change LED globe to motion sensor mode. Make sure your light switch on the wall switch is in the ON position.
Why is the motion sensor LED globe always ON when the fan is working?
It’s most likely the motion sensor LED globe has detected movement in the fan impeller.
Why is the motion sensor LED globe on when there is nobody in the bathroom?
The motion sensor LED globe detection range is between 3-5 meters and may react with movement when someone is in this proximity. If the functionality of the motion sensor globe causes an inconvenience, you can set the switch on the LED motion globe to the OFF position and use it as standard LED globe.
Why does the motion sensor LED globe switch ON then OFF for 2-3 seconds every time I turn the light switch ON at the switch plate?
It is because the LED globe reverts to the motion sensor mode. The first 2-3 seconds ON to OFF is the signal to program the PCB inside the LED motion globe. This is not considered a fault, the LED globe will perform this way whenever the light switch on the wall is switched to the off position.
